Air Handlers

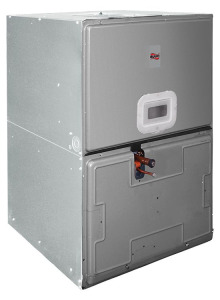

Choice Series: High Efficiency with ECM Motor (WBHP)
Features
- Industry Standard R-410A Refrigerant
- Models featuring Electric Heat without Indoor Cooling Coil
- Quiet and efficient ECM motor technology
- Only 35" tall and 4-way convertible for all those tight spaces
- Available from factory in upflow and horizontal configurations
- Nominal airflow up to 0.5" external static pressure withreduced airflow up to 1.0" external static pressure
- Sturdy steel construction with 1 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
- Permanent, easily accessible and washable filter furnished standard
- Circuit breaker (standard on units with more than 11 kW) meets U.L. and cUL requirements for service disconnect
- Factory installed auxiliary electric heat provides exact heat for indoor comfort over a variety of applications
- Watt restrictors, standard on WBHP-17 models above 6 kW and on WBHP-21, WBHP-24 & WBHP-25 models above 11 kW, stage supplemental heat so that only the necessary amount is engaged to maintain comfort in the conditioned space
- Fan settings for selectable, customized cooling airflow over a wide variety of applications
Specifications
(Not available in Canada)
- Efficiencies up to 14 SEER
- Quiet and efficient ECM motor technology
- Factory installed auxiliary electric heat provides exact heat for indoor comfort over a variety of applications
- Constant Torque Single Stage Airflow
- 35" Cabinet Height
Certifications
Documents
Warranties
Parts - 5 years
